SFR-S15-A1 (Std)
모델명 : SFR-S15-A1 (Std)
Material
(재질)		 :
* Stem (sus304/sus316)
* Float (sus316L)
Switching Current Max
(용량)		 :
* DC&AC 100V用 0.5A
* Option DC&AC 250V用 1A
Pressure
(압력)		 :
*  6 ㎏f/㎠
Operation Temperature
(온도)		 :
* 100 ℃
* Optiom 120 ℃
Suitable S.G
(비중)		 :
* 0.6
Reversible Switch Action
(방향)		 :
* Yes
Lead Wire
(전선)		 :
* AIW 22
* Opt

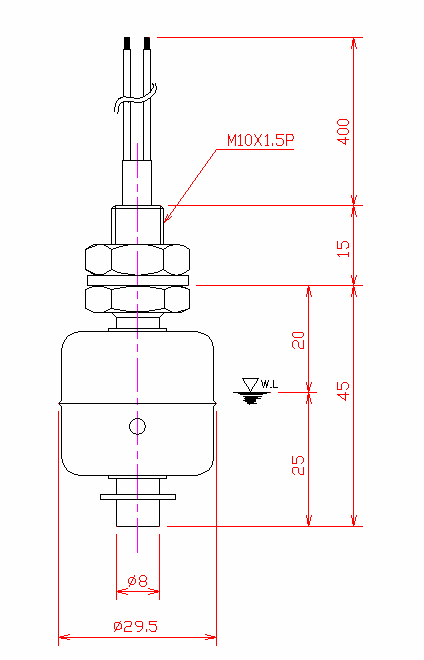

Mounting Size
(조립)		 :








								Applicatioms
(Use for) (사용처)
								:

* Water, Oil, medical liquid

















































































MODEL : SFR-S15-A1(Std), SFR-S1-A1(Std)















           1. SFR-S1-A1(Std)


               * SFR-S15-A1(Std)동일하며  나사규격만  PF1/8"임.
                    * SFR-S1-A1(Std)    --->  PF1/8"임.


                * SFR-S15-A1(Std)   --->  M10X1.5P"임.





         2. Auto cad 도면은 자료실 출력
